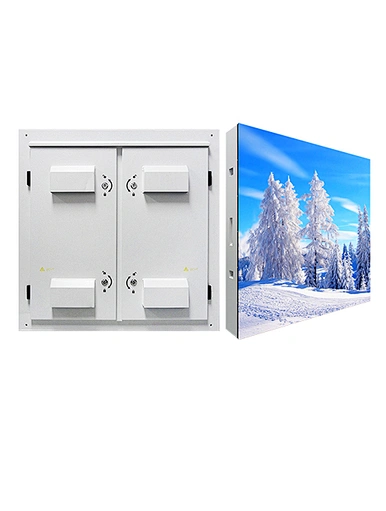

Outdoor Advertising Commercial LED Display
Outdoor Advertising Commercial LED Display
A series
Product Features

* 192x128mm and 320x160mm module, optional pixel pitch from P3 mm-P10 mm.

* Standard cabinet, size can be customized.

* The rear cover of the module is equipped with a waterproof silicone ring, which has good waterproof performance.

* Protection class IP65, suitable for outdoor use
Quantity

Item
AH3
AH3.8
AH6
AH2.5
AH4
AH5
AH8
AH10
Pixel Pitch (mm)
3.0
3.8
6.0
2.5
4.0
5.0
8.0
10
Module Size（mm*mm）
192*192*18
320*160*21
Module Resolution（L*W)
64*64
50*50
32*32
128*64
80*40
64*32
40*20
32*16
Scanning mode
1/16
1/13
1/4
1/16
1/10
1/8
1/3
1/2
LED Configuration
1R1G1B
LED Type
1415/1921
1921
2727
1415
1921
2727
3535
3535
Service Way
Back Service
Installation Way
Back Installation
Cabinet Size（mm*mm）
Customized
Cabinet Resolution（L*W)
192*192
150*150
96*96
256*192
240*240
192*192
120*120
96*96
Physical Density（dot/m²）
111111
67816
27777
160000
62500
40000
15625
10000
Brightness（cd/m²）
6000~6500
6000~6500
6000~7000
6000~6500
6000~6500
6000~7000
6000~7000
6000~7000
Cabinet Max Power Consumption
800W
Cabinet Aver. Power Consumption
260W
Cabinet Weight（KG)
11kg
30kg
Cabinet Material
Aluminum Magnesium (iron/aluminum option)
Protection Level
Face IP65
Contrast Ratio
≥5000:1
Grey Scale
14bit
Refresh Rate（Hz）
1920/3840Hz
Refresh Frame Frequency（Hz）
50Hz-60Hz
Horizontal View Angle（Deg）
≥140°
Vertical View Angle（Deg）
≥120°
Best Viewing Distance（M）
3M
4M
6M
2.5M
4M
5M
8M
10M
Input Voltage（V）
AC110Vz~AC220V
Module Max Current（A)
6.5A
6A
6A
8.5A
8A
8A
8.5A
8.5A
Working Temperature（℃）
-20℃+80℃
Working Humility（RH）
10％RH~95％RH
Life Span（H)
≥100000
MTBF（H)
≥10000
