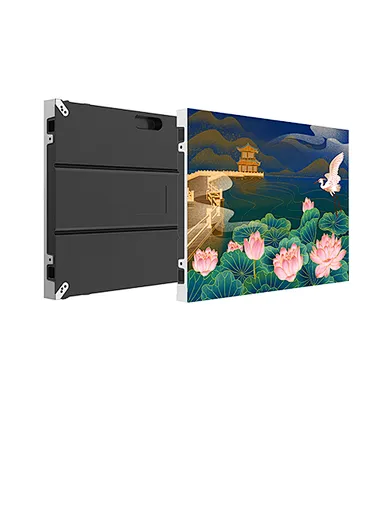

Indoor Small Pitch LED Display
Indoor Small Pitch LED Display
R Series
Product Features:

* Module size:320x160mm, Cabinet size:640*480mm. compatible pitch: R1.86/R2/R2.5.

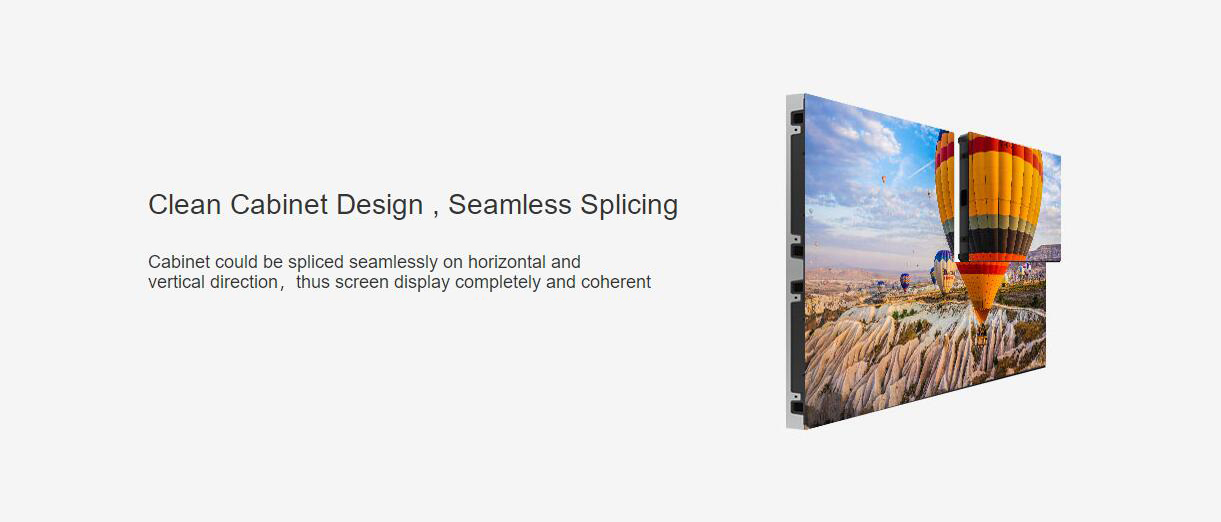

* Cabinet horizontally and vertically seamless splicing, effectively reduce the interference of visual gap, complete and coherent display performance

* Great display performance even at a short distance viewing

* 16-channel Constant Current Driving IC, better gray scale level

* High refresh rate. Nature gray scale shifting, reduce shooting stripes effectively
Quantity
small pixel pitch indoor led display,small indoor led display,indoor led wall pitch,small led screen display indoor
small pixel pitch indoor led display,small indoor led display,indoor led wall pitch,small led screen display indoor
small pixel pitch indoor led display,small indoor led display,indoor led wall pitch,small led screen display indoor
small pixel pitch indoor led display,small indoor led display,indoor led wall pitch,small led screen display indoor
small pixel pitch indoor led display,small indoor led display,indoor led wall pitch,small led screen display indoor
small pixel pitch indoor led display,small indoor led display,indoor led wall pitch,small led screen display indoor
small pixel pitch indoor led display,small indoor led display,indoor led wall pitch,small led screen display indoor
small pixel pitch indoor led display,small indoor led display,indoor led wall pitch,small led screen display indoor


Specifications


Item

R1.25

R1.53
(GOB Option)
R1.66
(GOB Option)
R1.86
(GOB Option)
R2
(GOB Option)
R2.5
(GOB Option)
R3

R4

Pixel Pitch (mm)
1.25
1.53
1.66
1.86
2.0
2.5
3.0
4.0
Module Size（mm*mm）
320*160*18
Module Resolution（L*W)
256*128
120*135
120*135
96*108
80*90
60*135
60*135
60*135
Scanning mode
1/64
1/45
1/45
1/48
1/30
1/30
1/30
1/30
LED Configuration
1R1G1B
LED Type
SMD1010
SMD1212
SMD1212
SMD1515
SMD1515
SMD1515
SMD2121
SMD2121
Service Way
Front Service
Installation Way
Front/ Rear
Cabinet Size（mm*mm）
640*480*74
Cabinet Resolution（L*W)
512*384
415*312
384*288
344*258
320*240
256*192
192*144
160*120
Physical Density（dot/m²）
640000
422500
360000
288906
250000
160000
90000
62500
Brightness（cd/m²）
500~900
Cabinet Max Power Consumption
600W
600W
600W
580W
580W
550W
450W
450W
Cabinet Aver. Power Consumption
200W
200W
200W
180W
180W
160W
160W
160W
Cabinet Weight（KG)
7.5kg

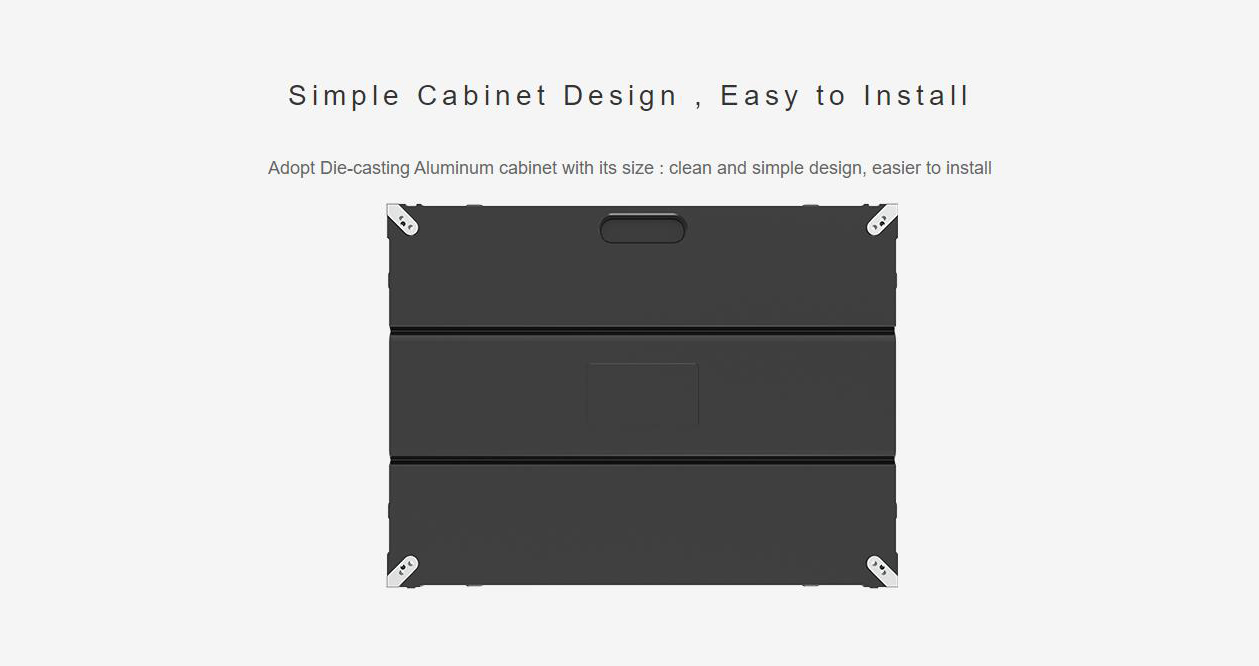

Cabinet Material
Die-casting aluminium
Protection
Level
IP45/Pixel
Face IP65
IP45/Pixel
Face IP65
IP45/Pixel
Face IP65
IP45/Pixel
Face IP65
IP45/Pixel
Face IP65
IP45/Pixel
Face IP65
IP45/Pixel
Face IP65
IP45/Pixel
Face IP65
Contrast Ratio
≥5000:1
Grey Scale
14bit
Refresh Rate（Hz）
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
≥3840Hz
≥1920Hz
≥1920Hz
≥1920Hz
Refresh Frame Frequency（Hz）
50Hz-60Hz
Horizontal View Angle（Deg）
≥140°
≥140°
≥140°
≥140°
≥160°
≥160°
≥160°
≥160°
Vertical View Angle（Deg）
≥120°
≥120°
≥120°
≥120°
≥140°
≥120°
≥120°
≥120°
Best Viewing Distance（M）
1.5M
1.6M
1.8M
1.9M
2M
2.5M
3.5M
4M
Input Voltage（V）
AC110Vz~AC220V
Module Max Current（A)
6A
6A
6A
6A
5A
4.5A
4.5A
4.5A
WorkingTemperature
（℃）
-20℃+80℃

-20℃+80℃
-5℃+60℃
-20℃+80℃
-5℃+60℃
-20℃+80℃
-5℃+60℃
-20℃+80℃
-5℃+60℃
-20℃+80℃
-5℃+60℃
-20℃+80℃

-20℃+80℃

Working Humility（RH）
10％RH~95％RH
Life Span（H)
≥100000
MTBF（H)
≥10000
