Creative Shelf LED Display-I-TAG
I-TAG Series
Product Features:
* Synchronous and asynchronous control: USB, Wi-Fi, 4G, network etc.

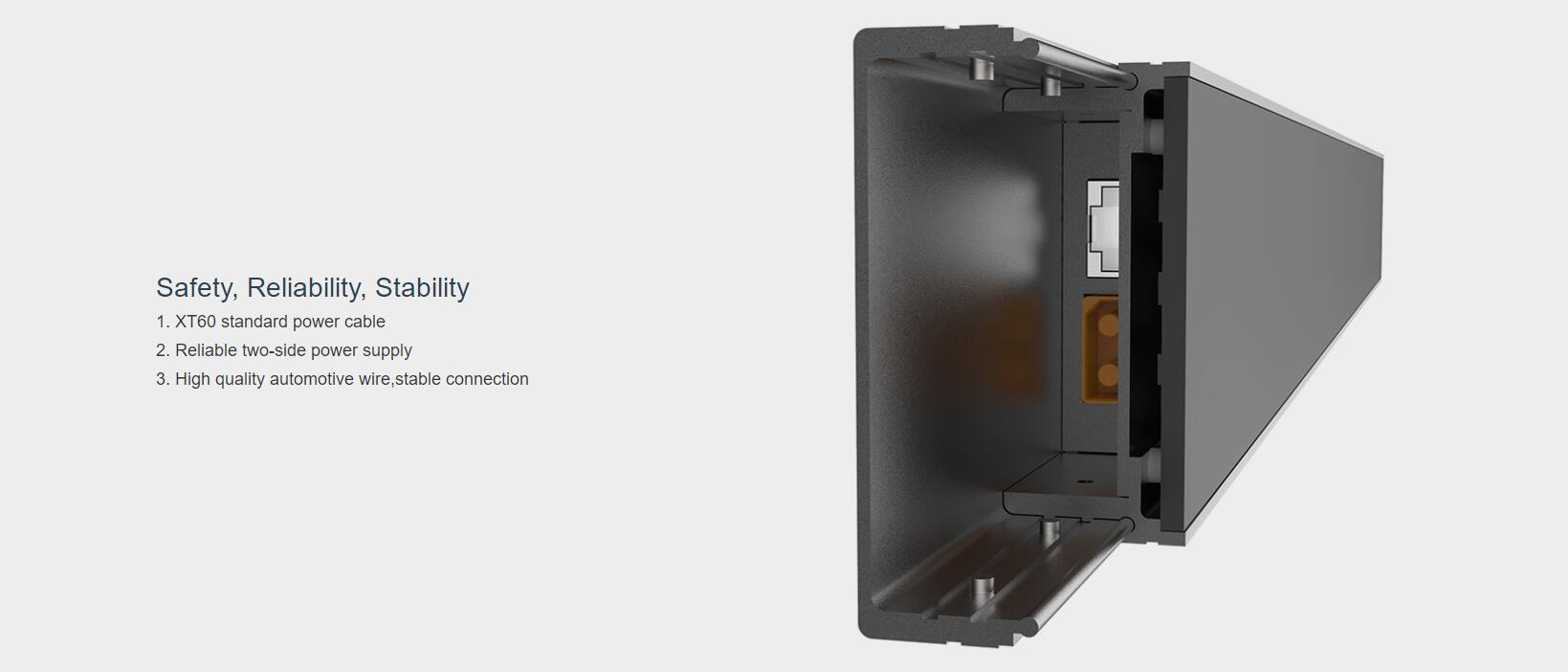

* 24V low voltage power, low power consumption, support power adapter (the screen length longest to 4.8 meters).

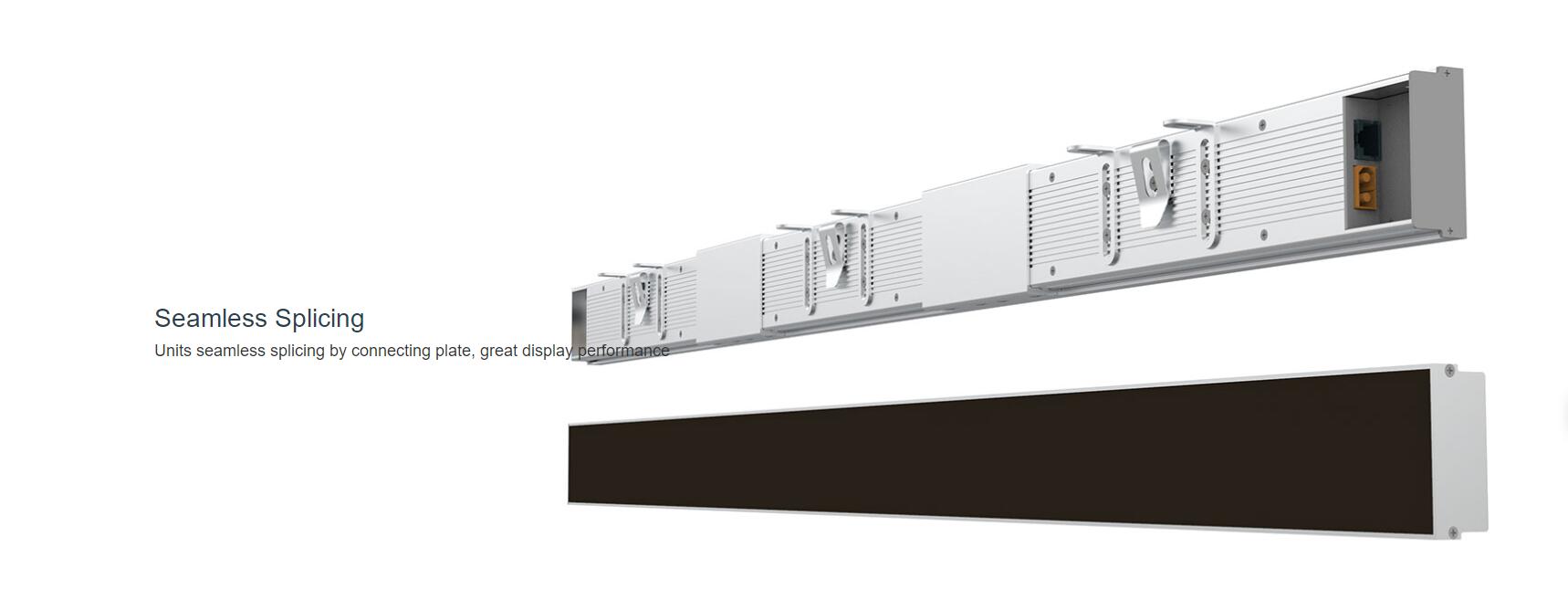

* Universal standardized profiles aluminum material, the size is 300x60mm, seamlessly assembled.
* The Horizontal and horizontal viewing angle of light can reach 170 degrees, wider than SMD
screen.
* High refresh rate and low gray, refresh rate ≧ 3840HZ, grey scale 14Bit.
* Excellent heat dissipation and low light decay, PCB board dissipate heat directly， extended service life.
* The screen face IP65, dust-proof, anti-oxidation, anti-static, anti-impact.
* Small size, light weight, compact and portable, plug and play.

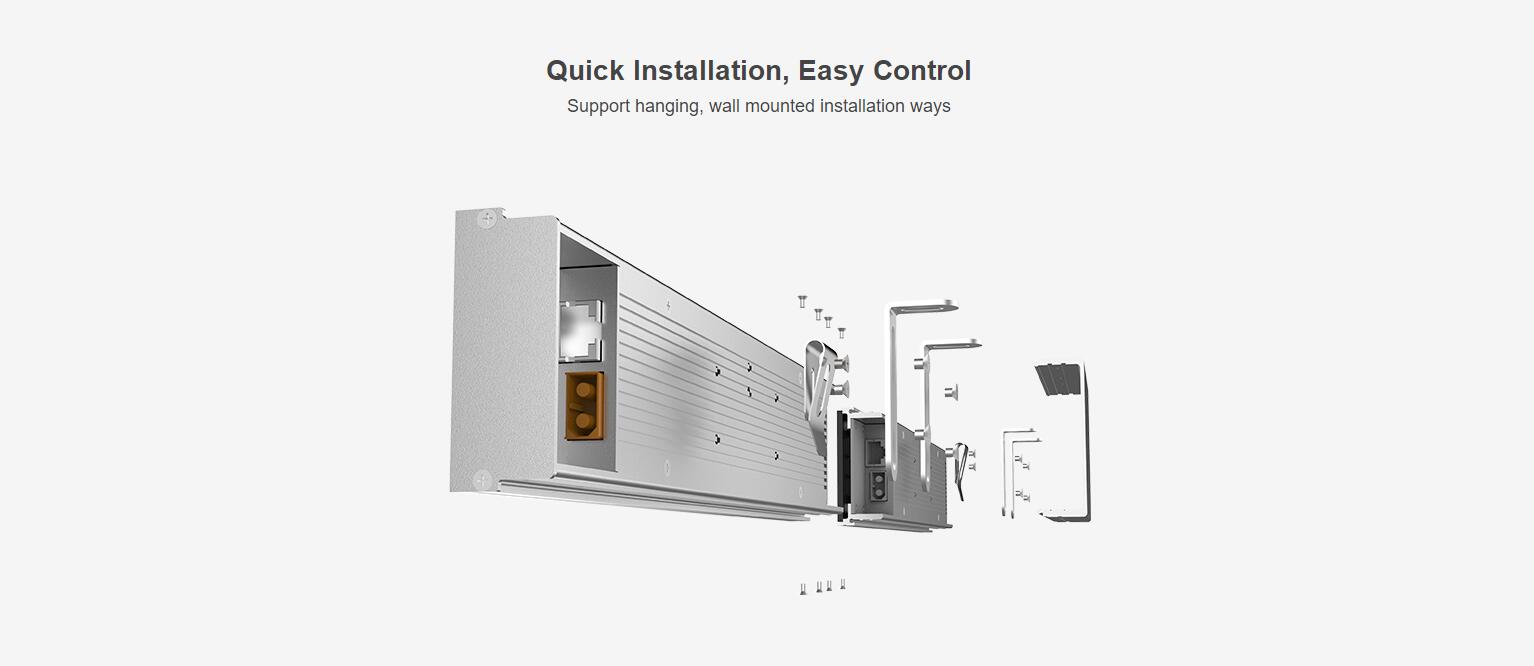

* The installation methods are diversified and widely used in various indoor places, give you a different visual experience
* Synchronous and asynchronous control: USB, Wi-Fi, 4G, network etc.
* 24V low voltage power, low power consumption, support power adapter (the screen length longest to 4.8 meters).
* Universal standardized profiles aluminum material, the size is 300x60mm, seamlessly assembled.
* The Horizontal and horizontal viewing angle of light can reach 170 degrees, wider than SMD
screen.
* High refresh rate and low gray, refresh rate ≧ 3840HZ, grey scale 14Bit.
* Excellent heat dissipation and low light decay, PCB board dissipate heat directly， extended service life.
* The screen face IP65, dust-proof, anti-oxidation, anti-static, anti-impact.
* Small size, light weight, compact and portable, plug and play.
* The installation methods are diversified and widely used in various indoor places, give you a different visual experience
Quantity
Item | T300 | TY300 | TYF300 |
|---|---|---|---|
Module Size（mm*mm） | 150*56.25 | ||
Module Resolution（L*W) | 120*45 | ||
Scanning mode | 11/45 | ||
LED Configuration | COB 1R1G1B | ||
Control Way | Synchronous | Asynchronous | Sync./Async.(Option) |
Installation Way | Hanging/ mounted | ||
Cabinet Size（mm*mm） | 300*60*23 | ||
Cabinet Resolution（L*W) | 240*45 | ||
Physical Density（dot/m²） | 640000 | ||
Brightness（cd/m²） | 50~600cd/m² adjustable | ||
Cabinet Max Power Consumption | 15W | ||
Cabinet Aver. Power Consumption | 5W | ||
Cabinet Weight（KG) | 0.35kg | ||
Cabinet Material | Profile aluminum | ||
Protection Level | Pixel face IP65 | ||
Contrast Ratio | 10000:1 | ||
Grey Scale | 14bit | ||
Refresh Rate（Hz） | 3840Hz | ||
Refresh Frame Frequency（Hz） | 50Hz/60Hz | ||
Horizontal View Angle（Deg） | ≥170° | ||
Vertical View Angle（Deg） | ≥170° | ||
Best Viewing Distance（M） | 1.3M | ||
Input signal | RJ45 | ||
Max Length | 4.8M | ||
Input Voltage（V） | 24V | ||
Module Max Current（A) | 0.6A | ||
Working Temperature（℃） | -20℃+80℃ | ||
Working Humility（RH） | 10％RH~95％RH | ||
Life Span（H) | ≥100000 | ||
MTBF（H) | ≥10000 | ||
